Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant

Price : Contact Us

MOQ : 1

Packaging Details : wooden box package

Delivery Time : 45-60 days

Payment Terms : T/T

Supply Ability : 20 units/month

type : TURNING CENTER

max. length of workpiece (mm) : 550

machining capacity : Heavy Duty

width of bed (mm) : 35 mm

spindle motor power(kw) : 14KW

no. of spindles : Twin

Fixture : Hydraulic Chuck

Coolant Pump Power : 700W

Condition : New

Contact Now

Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant


Description

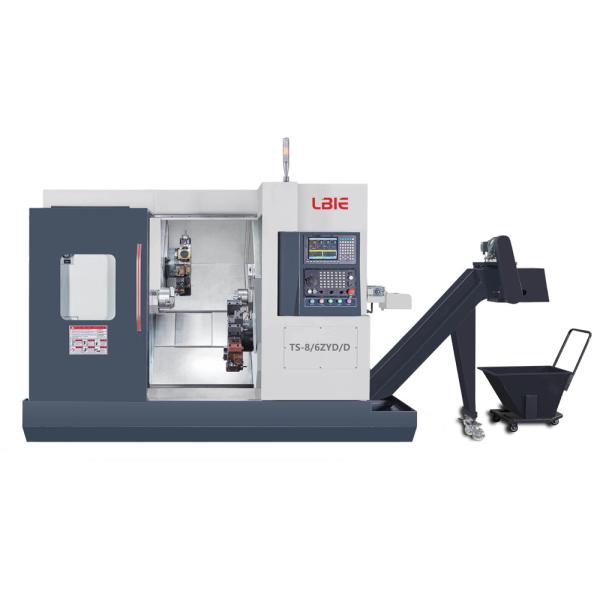

Built for high-efficiency machining, the TS-8/6ZYD/D dual-spindle, dual-turret CNC machine incorporates dual Y-axes to handle complex workpiece geometries. Its ability to machine two parts simultaneously maximizes throughput while maintaining exceptional precision. The rigid HT300 cast iron bed structure provides excellent stability, reducing machine deflection and ensuring consistent performance.

Specification

Parameter Unit TS-8/6ZYD/D
Dual-spindle Dual-turret Turning and Milling Machine Tool
Max. Turning Diameter mm Φ200
Max. Machining Length mm 550
Max. Swing Diameter mm Φ200
Bar Feeding Diameter mm <Φ52
Spindle Bore mm 1st Spindle: Φ66; 2nd Spindle: Φ56
Max. Spindle Speed RPM 1st Spindle: 3500; 2nd Spindle: 4000
X-axis Travel mm X1: 250 ; X2: 250
Y-axis Travel mm Y1:90 ; Y2:90
Z-axis Travel mm Z1:600; Z2:600
B-axis (Tailstock) Travel mm 550


Other information
CNC or not
slant bed or not
Hydraulic System
CNC
slant
Channels


Products Description
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
Details Display
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
The X-axis and Z-axis feature high-rigidity linear slides with anoptimally calculated track span,offering low resistance,highprecision,and speeds up to 22m/min.This enhances workefficiency and reduces processing time.
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
The machine's transmission system employs high-precision ball screws and high-rigidity,high-speed roller guides.
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
The Driven Tool Turret can perform various machining operations such as drilling,milling,and tapping,which meansthat a single machine can complete more types of tasks,enhancing the flexibility and range of the machine.Overall,thelathe Driven Tool Turret significantly improves the efficiencyand quality of lathe machining by providing multi-functionalmachining capabilities,quick tool changes,high precision,andautomated operations.It is an indispensable and importantcomponent in modern precision manufacturing.
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
Our CNC turret lathes are equipped with avariety of mechanicalspindles to choose from.These spindles are notable for theirhigh rigidity,minimal noise and vibration,and,crucially,theirability to perform high-precision operations.The precisionof movement and the robustness of the spindle componentsplay a pivotal role in defining the quality of processing and theefficiency of cutting operations.
NSK super-precision bearings,featuring high running accuracy,rapid speed capabilities,and exceptional precision,are ideallysuited for spindle units in machine tools.These bearings arespecifically engineered to reduce noise,vibration,and heatgeneration,enhancing overall performance.
In addition,the eletric spindle can be selected.The advantagesof an electric spindle include high speed,high precision,widerange of speed variation,high rigidity,precise control,energysaving and environmental protection,and low maintenancecosts.Overall,the machine tool electric spindle has significantadvantages in improving processing efficiency,precision,and quality,and therefore,it is widely used in modernmanufacturing.
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant


Equipment Display
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
Syntec Powerful Dual Spindle Dual Turret Lathe For Manufacturing Plant
